Stage Lighting Control Console A48 - Code

The A48 lighting control console is one of CODE's stage lighting control devices and is widely used in current event stages. For more information about this lighting control console, pleaseread the article below from ProAVL !

1. Stage lighting control console applications

A stage lighting control console is one of the specialized pieces of equipment used in stage events and entertainment. This equipment is commonly used in fields such as:

• For professional stage use: Lighting control consoles are commonly used for music stages, shows, concerts, etc., creating impressive lighting effects and making the stage look more professional.
• Suitable for stage and auditorium use: Used in ceremonies such as seminars, award ceremonies, corporate events, etc., with adjustable lighting to suit the specific purpose and needs of the event.
• Suitable for stage use in bars and nightclubs: This lighting control console is commonly used in bars and nightclubs, helping to create a professional and unique atmosphere, enhancing the customer experience.
• Uses for Sports and Entertainment Events: Lighting control consoles are also commonly used in sporting events to create special effects for the event.

In addition, lighting control consoles can be used in many different fields. Depending on the customer's intended use, they can choose the appropriate stage lighting control console. Please contact our Hotline : 0972.787.123 for detailed advice and pricing on the A48 lighting control console.

2. Introducing the CODE 48A control panel

The CODE 48A lighting control console is one of the DMX controllers with many outstanding features. Some of these features include:

• It is possible to save lighting scenes and edit programs.
• It is possible to create one manual scene, twelve auxiliary scenes, and one program simultaneously.
• The CODE 48A control panel can directly control any dimmer switch, following the same protocol.
• Applications of the CODE A48 lighting control console: Suitable for small events, meeting rooms, studios, etc.

3. Technical specifications of the A48 lighting control console

Specifications of the genuine CODE A48 stage lighting control console:

• 48 DMX channels with isolated optical outputs.
• LCD screen.
• 24 channel faders × 2 pages, 12 auxiliary faders × 3 pages, 1 chase speed fader, 1 cross chase fader, 1 channel master fader and 1 master fader.
• 36 submasters for editing and archiving.
• 24 chases, maximum 80 steps per chase.
• This function activates music playback for Chase.
• One scene, 12 submasters, and one chase can operate simultaneously.
• Flash control: Submaster.
• Data is saved automatically.
• Power supply: AC 100 - 240V, 50 - 60Hz.
• Dimensions: 482mm × 310mm × 95mm.
• Weight: approximately 7 kg.

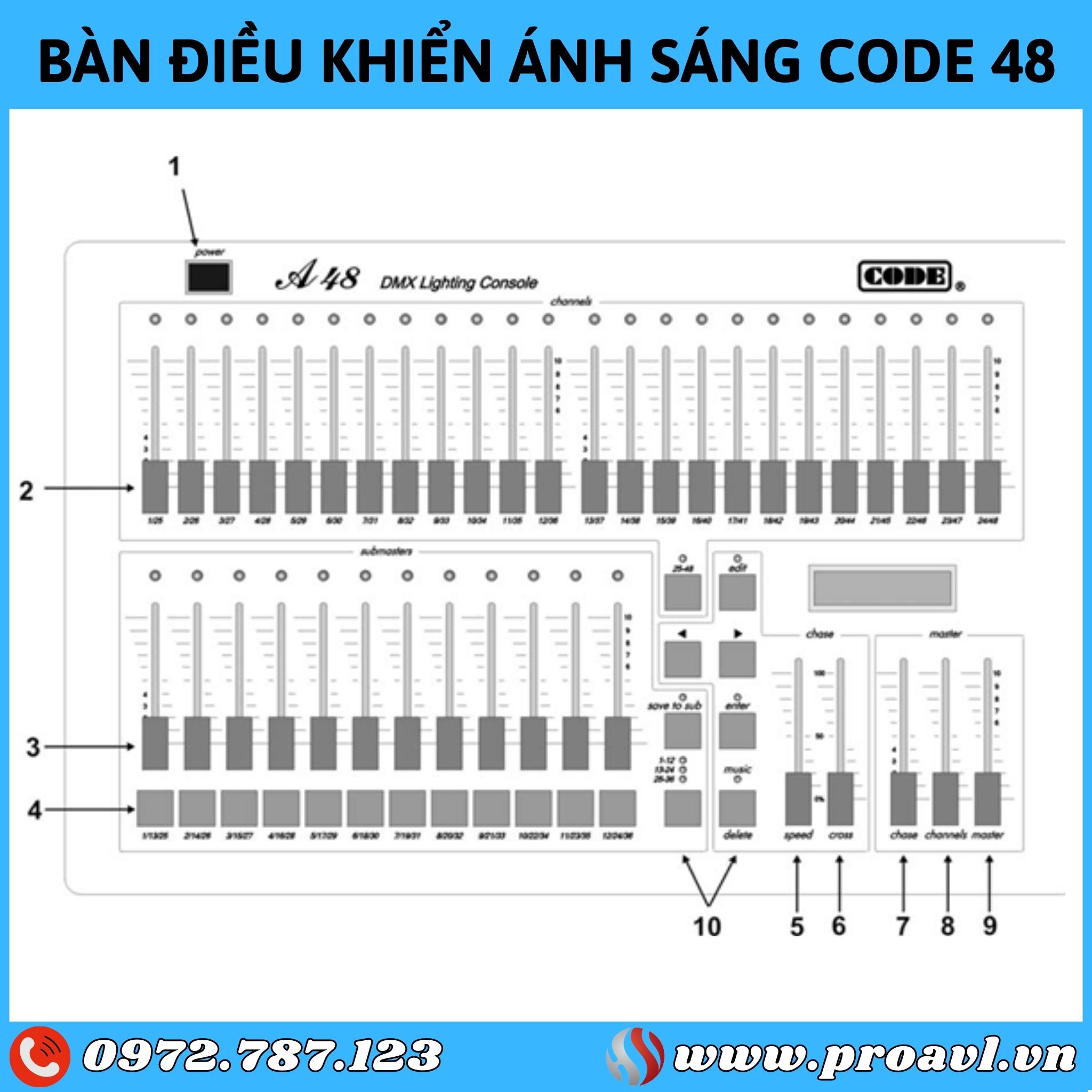

3. Instructions for using the A48 lighting control console

Some of the functions of the keys on the genuine CODE A48 stage lighting control console from ProAVL company are as follows:

1. Power switch
2. Channel slider
3. Auxiliary slider
4. Flash key
5. Speed ​​slider
6. Cross slide
7. Output slider
8. Output slider
9. Main slider
10. Function keys

4. Code lighting control console distributor at ProAVL

Why should you choose our services? Here are some of the benefits you can receive when using our services:

• High-quality lighting control consoles: We only use genuine and reputable equipment. Our control consoles guarantee quality and create incredibly magical and beautiful effects.
• Enthusiastic consulting team: We have a team of consultants who are ready to meet customer needs and offer service packages that fit their budget. This ensures customers have the most innovative and professional experience.
• Professional technical team: The lighting technicians at ProAVL always work with a high sense of responsibility, are punctual, and always provide enthusiastic support to customers.
• Warranty Policy: We always have warranty and regular maintenance policies for our customers. In particular, we offer special benefits for loyal customers who use our services.

Customers can contact ProAVL via hotline or email for advice and assistance with their purchase.
