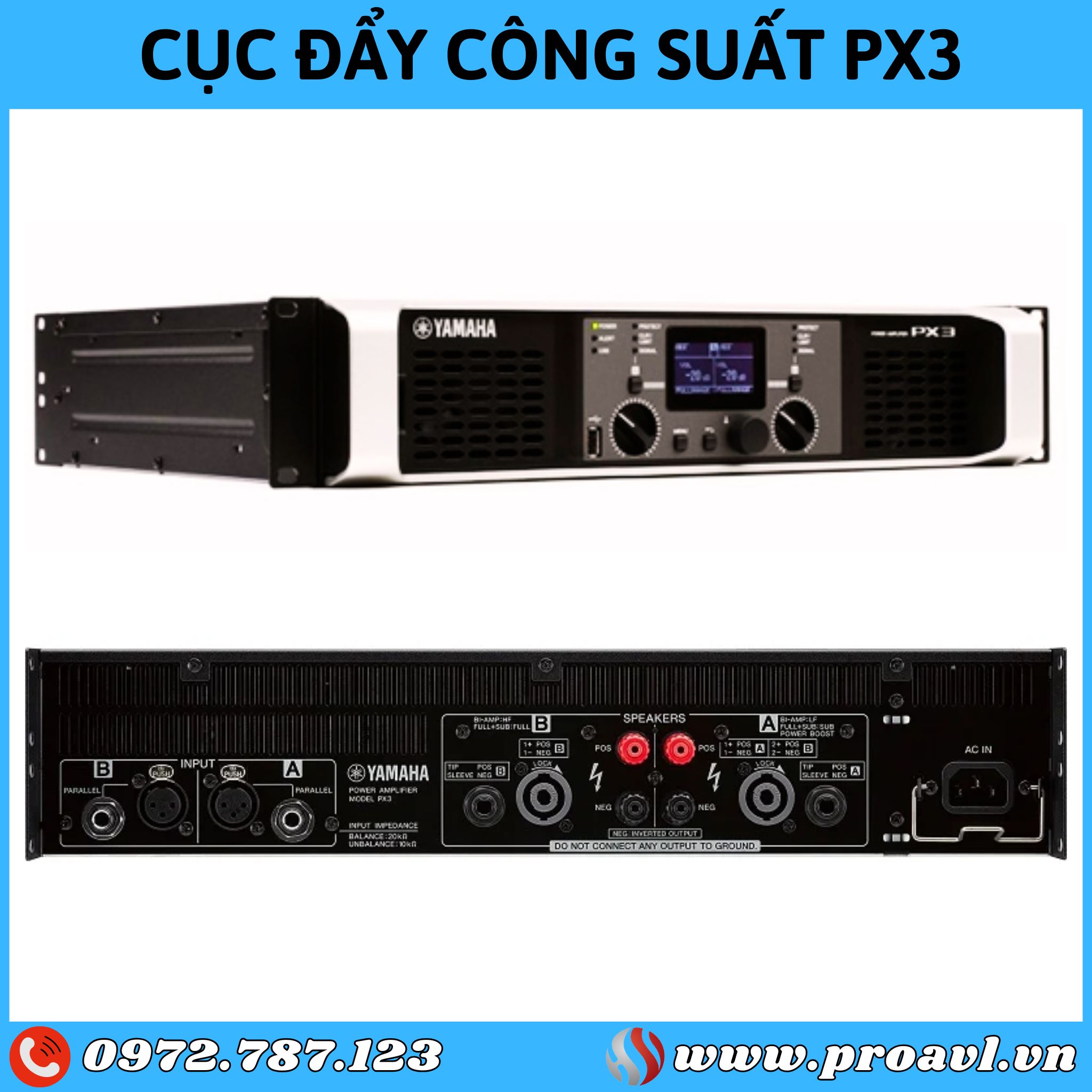

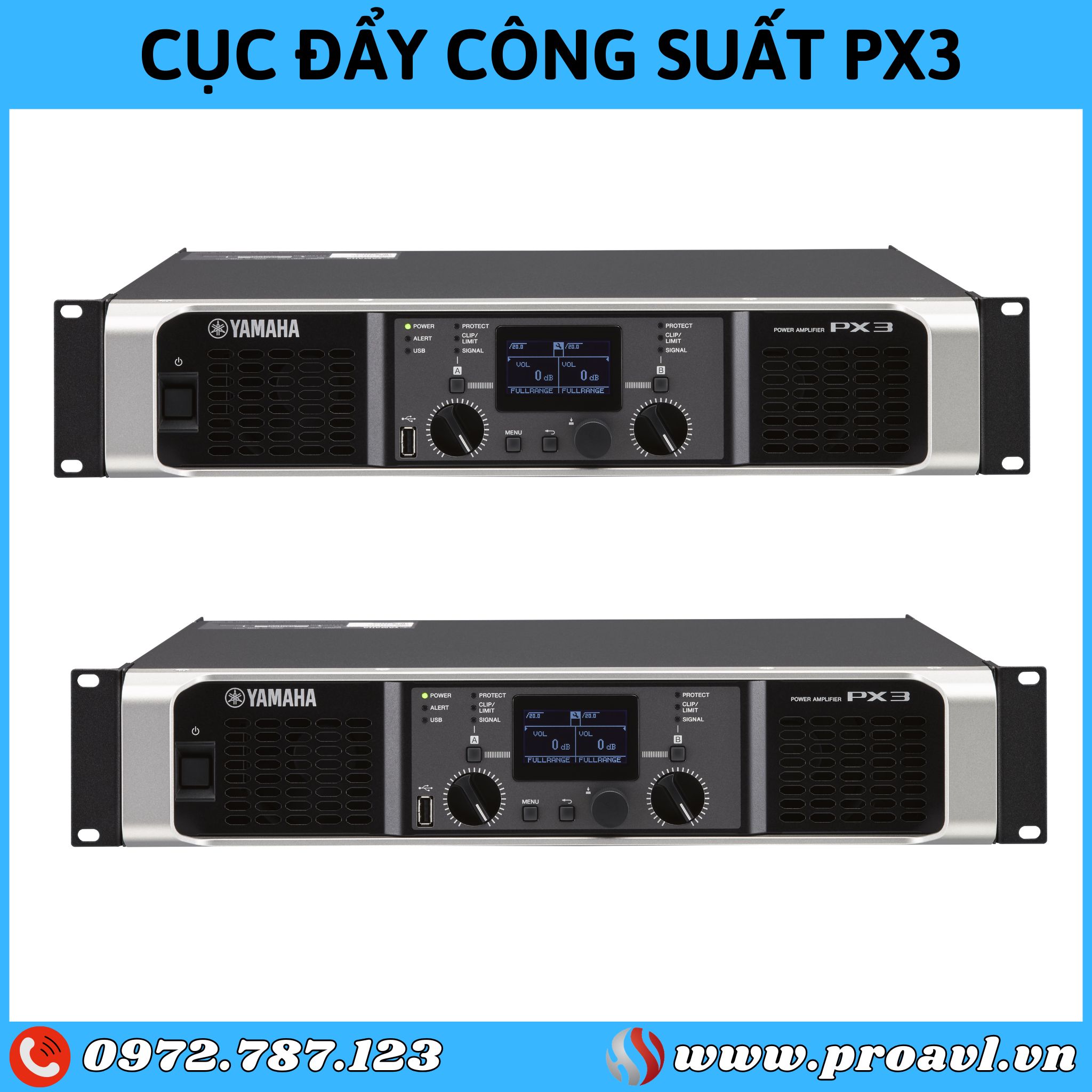

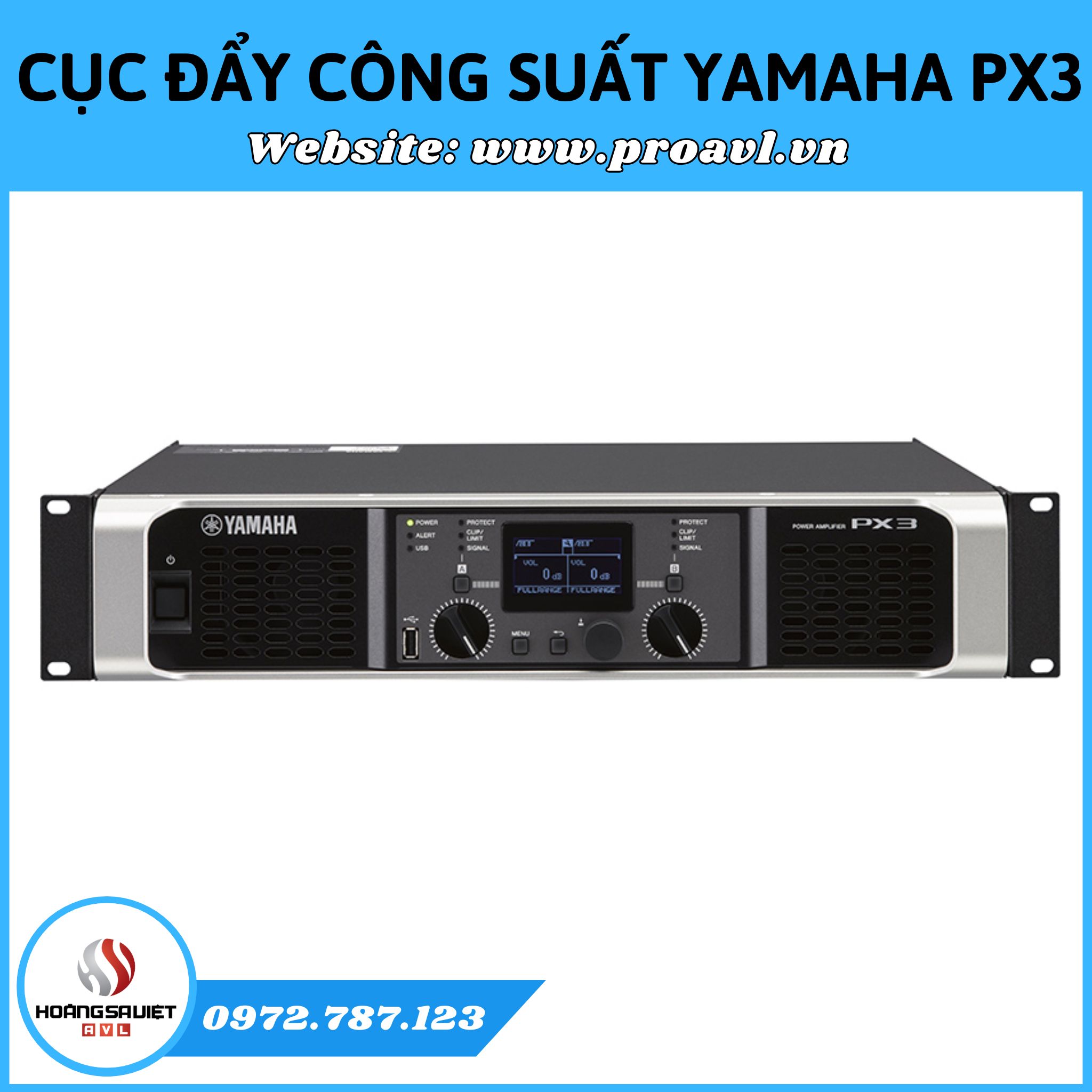

Yamaha PX3 Power Amplifier

100V MODEL

PX3

Output (1kHz Non-clip 20msec Burst on both channels, controlled)

8Ω

300W x 2

4Ω

500W x 2

2Ω

300W x 2

8Ω / Power Boost Mode

600W x 1

4Ω / Power Boost Mode

1000W x 1

120V MODEL

PX3

Output (1kHz Non-clip 20msec Burst on both channels is controlled).

8Ω

300W x 2.

4Ω

500W x 2.

2Ω

300W x 2.

8Ω / Power Boost Mode.

600W x 1.

4Ω / Power Boost Mode.

1000W x 1.

220V-240V MODEL

PX3

Output (1kHz Non-clip 20msec Burst on both channels, controlled).

8Ω

300W x 2.

4Ω

500W x 2.

2Ω

300W x 2.

<8Ω / Power Boost Mode.

600W x 1.

4ω/ Power Boost Mode.

1000W x 1.

GENERAL SPECIFICATIONS

PX3

Sampling rate.

Internal

48kHz.

A/DD/A converter.

AD/DA: 24-bit linear, 128 times the sampling rate.

Total harmonic distortion.

0.1% (1kHz, 10W), 0.3% (1kHz, half power).

Provide feedback regularly.

± 1.0dB (1W, 8Ω, 20Hz to 20kHz).

S/N ratio.

100dB (A-weighted, 8Ω, gain = +14dBu).

Trans-sound understanding.

Less than -60dB (Half Power, 8Ω, 1kHz, Input Voltage 150Ω shunt).

Increase voltage/sensitivity

Maximum mass 8Ω

• 32.0dB / +4.1dBu (Gain setting: 32dB).
• 26.0dB / +10.1dBu (Gain setting: 26dB).
• 32.1dB / +4dBu (Gain setting: +4dBu).
• 22.1dB / +14dBu (Gain setting: +14dBu).

8Ω Maximum Volume / Boost Mode.

• 35.0dB / +4.1dBu (Burst setting: 32dB).
• 29.0dB / 10.1dBu (Burst setting: 26dB).
• 35.1dB / 4 days (increase setting: +4dBu).
• 25.1dB / +14dBu (increase the setting value by +14dBu).

Maximum input voltage.

+ 24dBu

Input impedance

ω>

I/O connectors

Speaker output port.

Neutrik speakon NL4 x2, Parallel pair x2, 1/4" PHONE (TS) x2.

Line Input.

XLR-3-31 x2, 1/4" PHONE (TRS) x2.

Other.

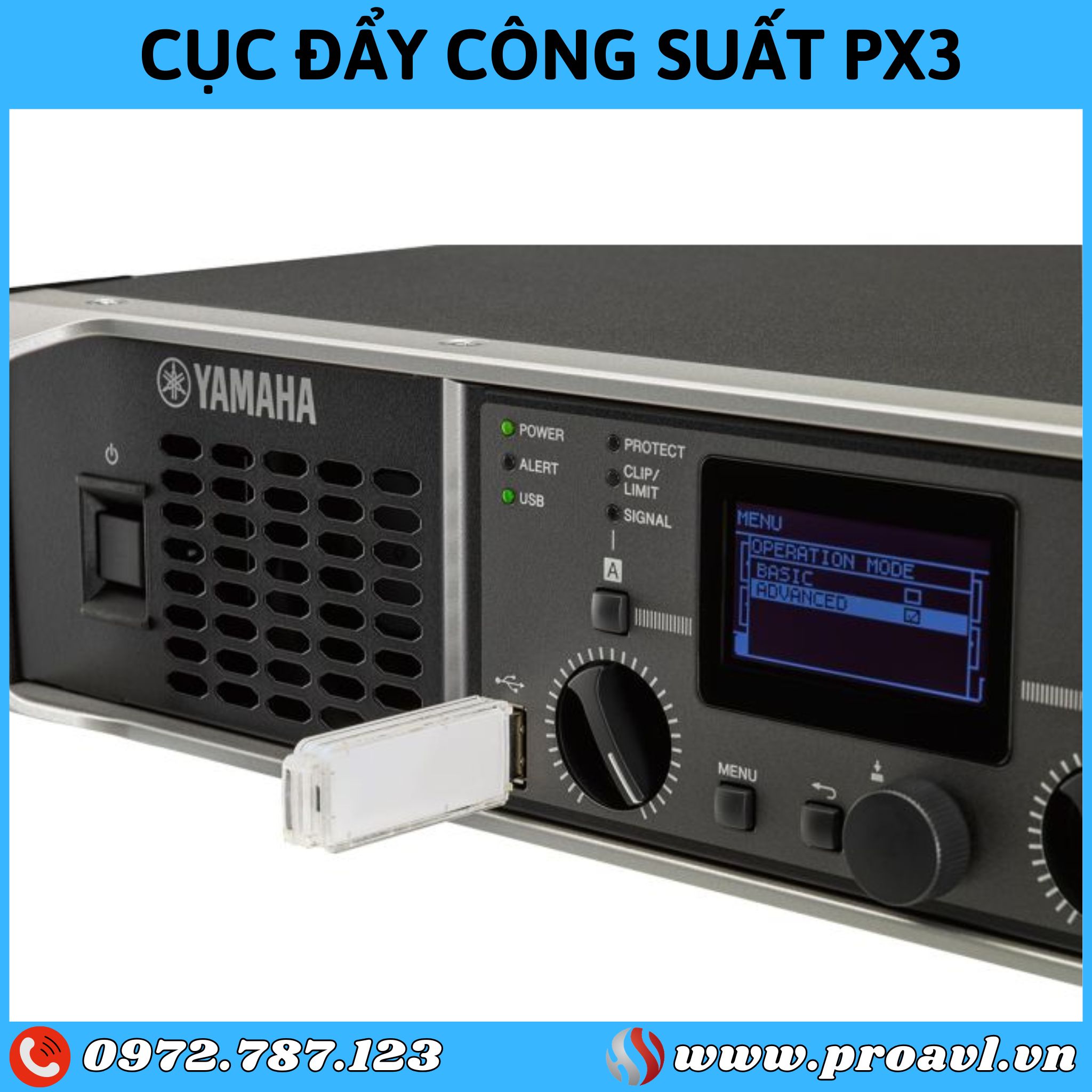

• USB 2.0 Standard-A Connector for Save/Load.
• Preset Speakers.
• Update the software using a USB drive.
• One AC input with AC cable clamp.

Index

• POWER X1 (Green).
• ALERT x1 (Red).
• USB x1 (blue).
• PROTECT x2 (Red).
• CLIP / LIMIT x2 (Red).
• SIGNAL x2 (Blue).
• The LED lights automatically turn off.

Microprocessor

Input; D-CONTOUR (FOH / MAIN, MONITOR, T OFFT); Delay (0 - 74msec); HPF / LPF (crossover frequency 20Hz ~ 20kHz with polarity control); Speaker processor (6-band PEQ + Limiter + Delay).

Latency

1.5 msec (Analog Input to Speakers).

Pre-order

8 user amplifier settings (Manufacturer's Presets: Speaker presets for Yamaha passive speakers).

Protection circuit

Load protection

• POWER button: Turns on/off; mutes.
• Output voltage protection: Overvoltage regulator, user-configurable power and speaker presets.
• DC error: Power off (NO automatic recovery).

Protection amplifier

Thermal: Output limit (Automatic recovery) → Mute (Automatic recovery); Overcurrent: Output mute (Automatic recovery); Overvoltage: Output limit (Automatic recovery); Built-in power limit: Output limit (Automatic recovery)

Power supply protection

• Temperature: Output limiting device (Automatic recovery) → Power supply shuts off.
• Overvoltage: shuts off the power; Overcurrent: shuts off the power supply.

Layer amplification

Class D, balanced circuit (BTL).

Cool

16-step variable fan speed x 2, front and rear airflow.

Source request

Depending on the area purchased; 100V 50Hz/60Hz, 120V 60Hz, 220V-240V 50Hz/60Hz * Verified to operate at rated voltage +/- 10% voltage.

Energy consumption

160W (1/8 MAX power, 4Ω, pink noise on all channels), 55W (4Ω, Idling)

Size

W

480mm (18-7/8").

H

88mm (3-7/16"): 2U.

D

388mm (15-2/8").

Net weight

6.9 kg (15.21 lbs).

Accessory

USB holster, Owner's Manual, Specifications, AC cable (2.0m) x 1.

Other

• USB 2.0 Standard-A Connector for Save/Load, Speaker Presets, and Software Updates via USB Memory.
• One AC input with AC cable clamp.
