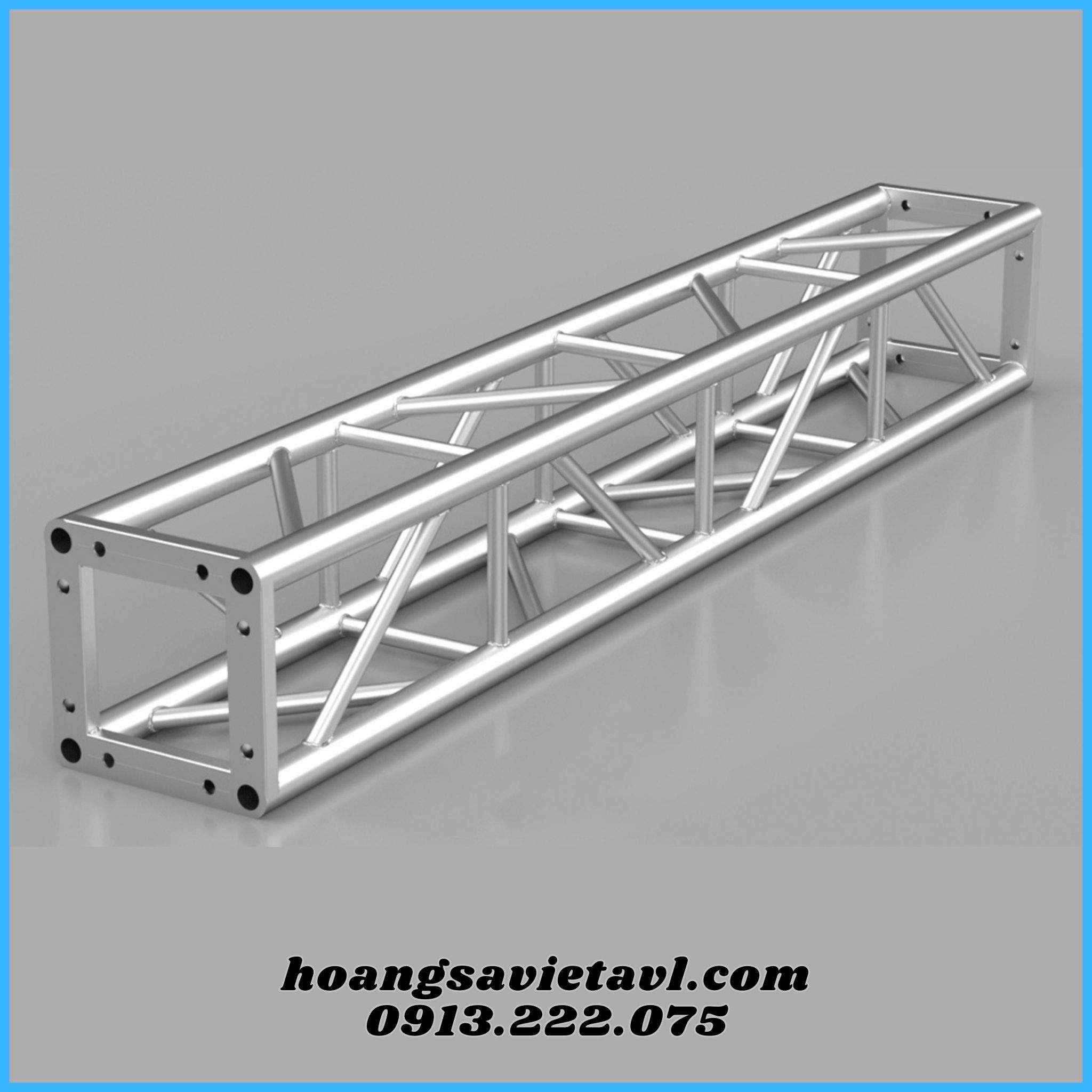

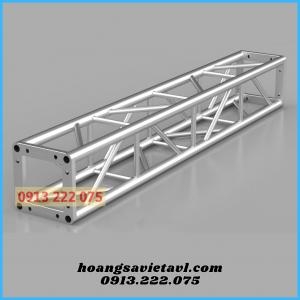

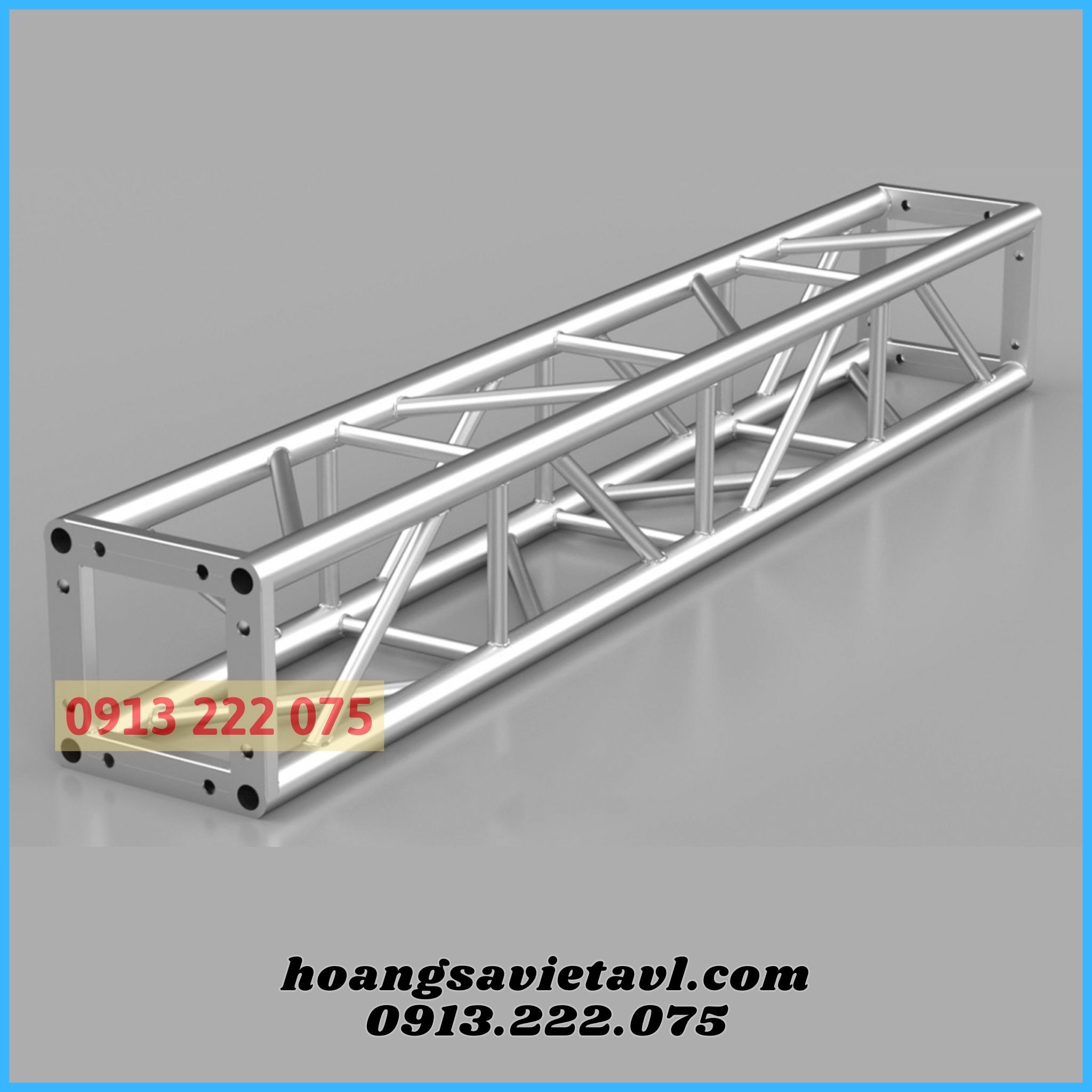

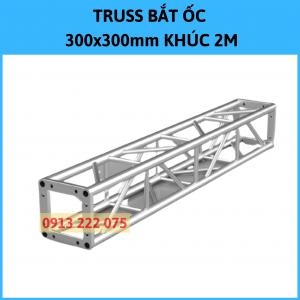

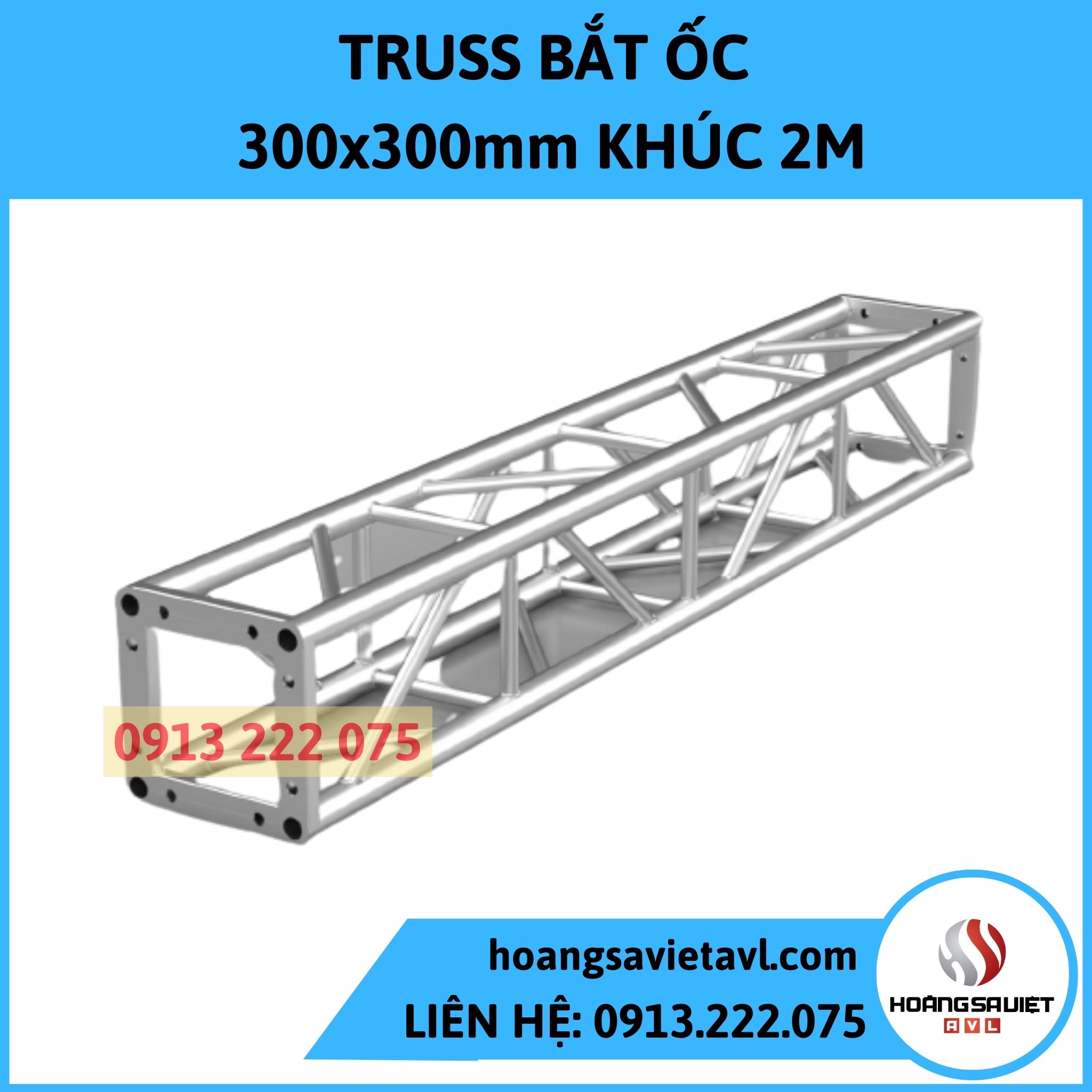

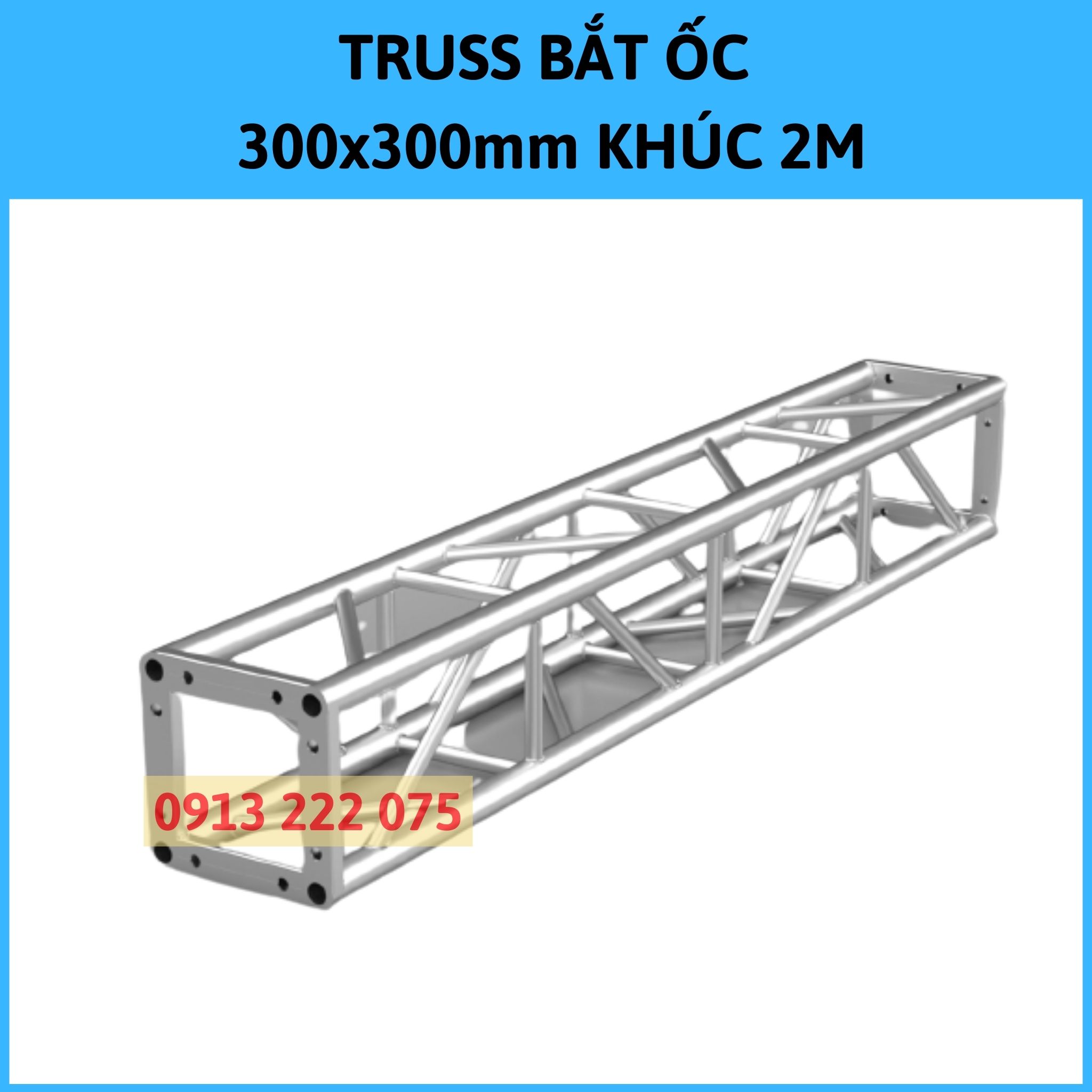

300X300mm Aluminum Truss Frame 2M . Section

Specifications of aluminum Truss frame 300x300mm with screws VS3030B_2M

- Application: Stage truss, event canvas, truss truss hanging stage lights

- Alloy material: Aluminum Alloy 6061-T6/6082-T6

- Connection type: 8-hole screw (bolt) Truss

- Module length: 2000mm (2.0m) or made to order

- Structure: 300*300mm 4D box or made to order

- Maximum aperture: Extended maximum aperture 12m (12000mm) straight nối

- Box form: 4-sided square 4D box

- Main aluminum tube: φ50*3mm - 50mm diameter pipe. Thickness 3mm

- Horizontal pipe: φ25*2mm - Pipe diameter 25mm. Thickness 2mm

- Diagonal tube: φ25*2mm - Diameter 25mm. Thickness 2mm

- Color: Silver-white natural aluminum alloy color. Or paint on request

- Weight: 15.05kg/ (module 2.0m)
