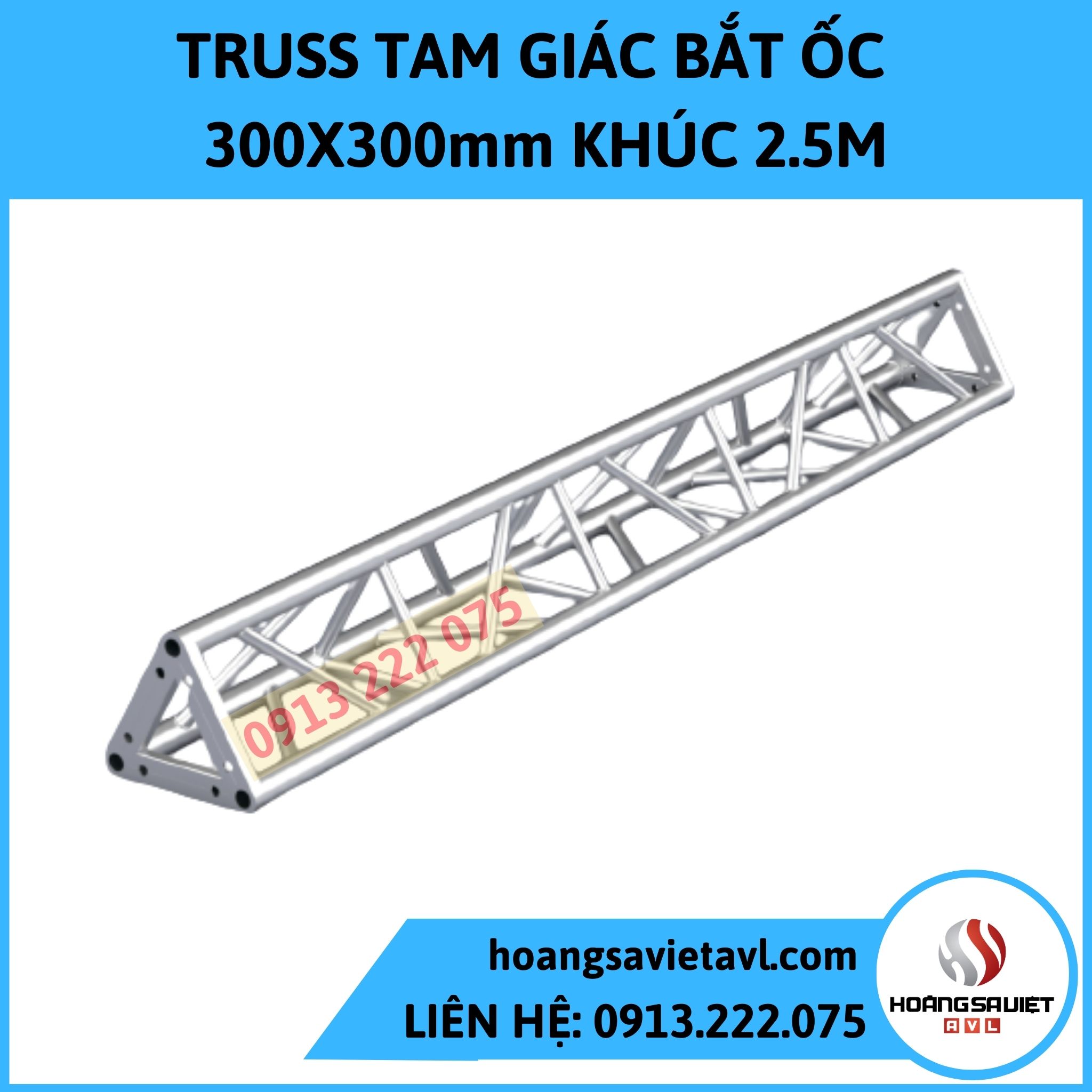

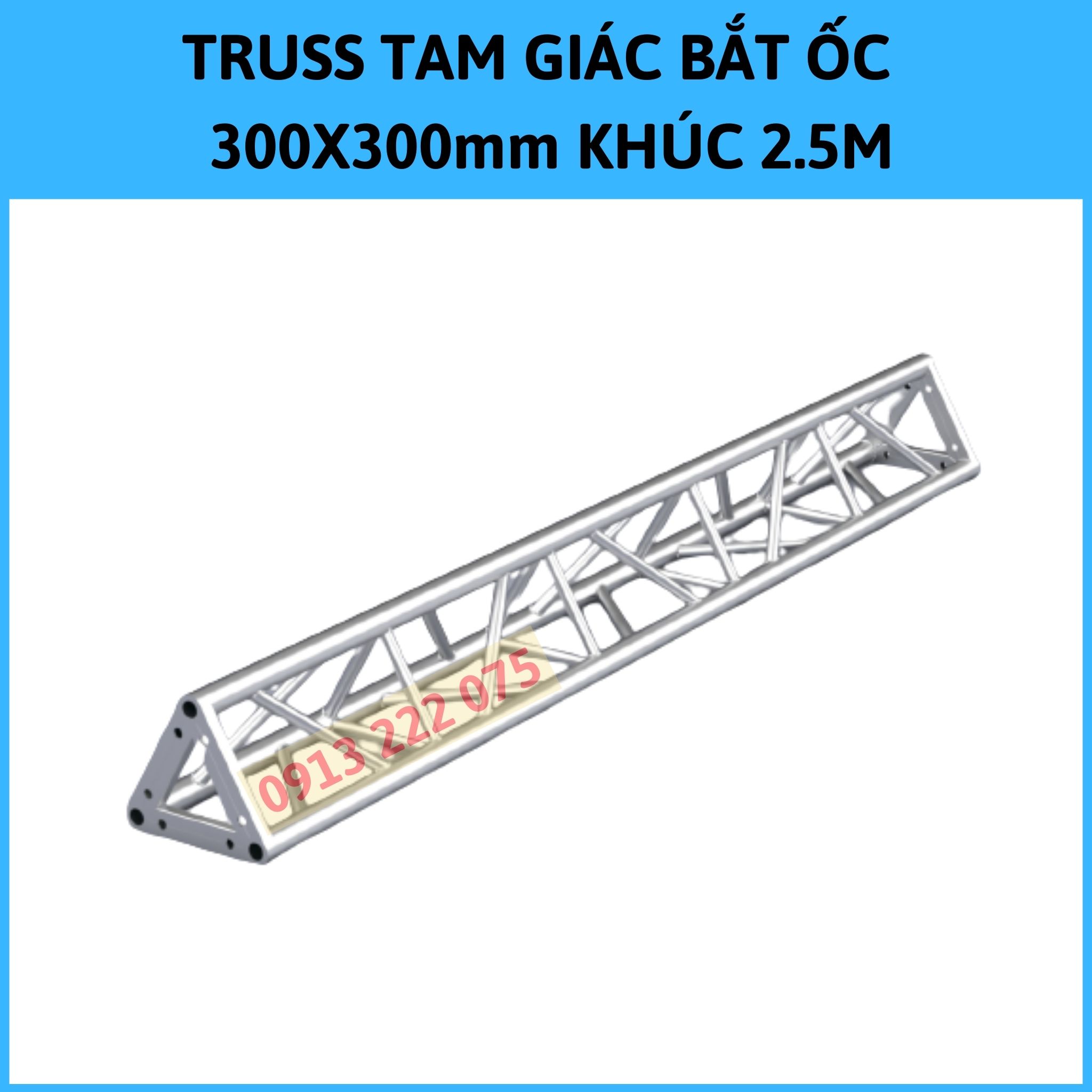

Truss Triangle 300X300mm Section 2.5M

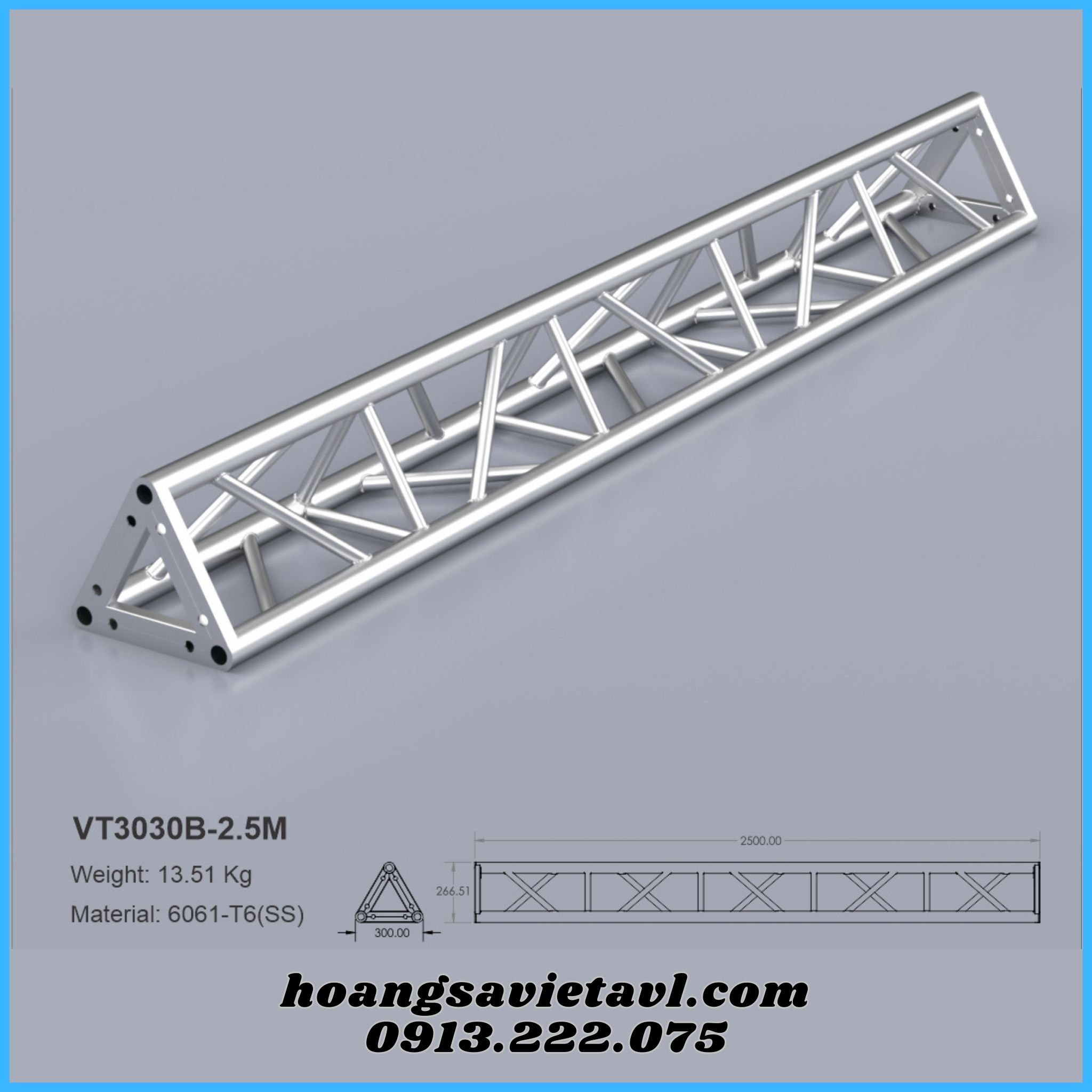

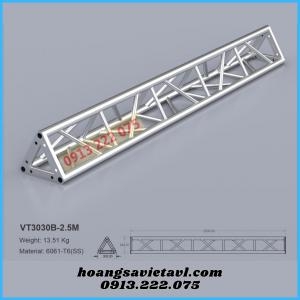

Specifications Triangle Aluminum Truss Frame VT3030B_2.5M

• Application: Stage truss, event canvas, truss truss hanging stage lights
• Alloy Material: Aluminum Alloy 6061-T6/6082-T6
• Connection type: 8 hole screw (bolt) Truss
• Module length: 2500mm (2.5m) or made to order
• Structure: 300*300mm 3D box or made to order
• Maximum aperture: Extended maximum aperture 12m (12000mm) straight
• Box form: 3D square box with 3 triangle faces
• Main aluminum tube: φ50*3mm - 50mm diameter tube. Thickness 3mm
• Horizontal pipe: φ25*2mm - Pipe diameter 25mm. Thickness 2mm
• Diagonal tube: φ25*2mm - Pipe diameter 25mm. Thickness 2mm
• Color: Silver-white natural aluminum alloy color. Or paint on request
• Weight: 13.51kg / (module 2.5m)
