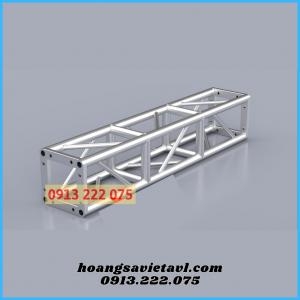

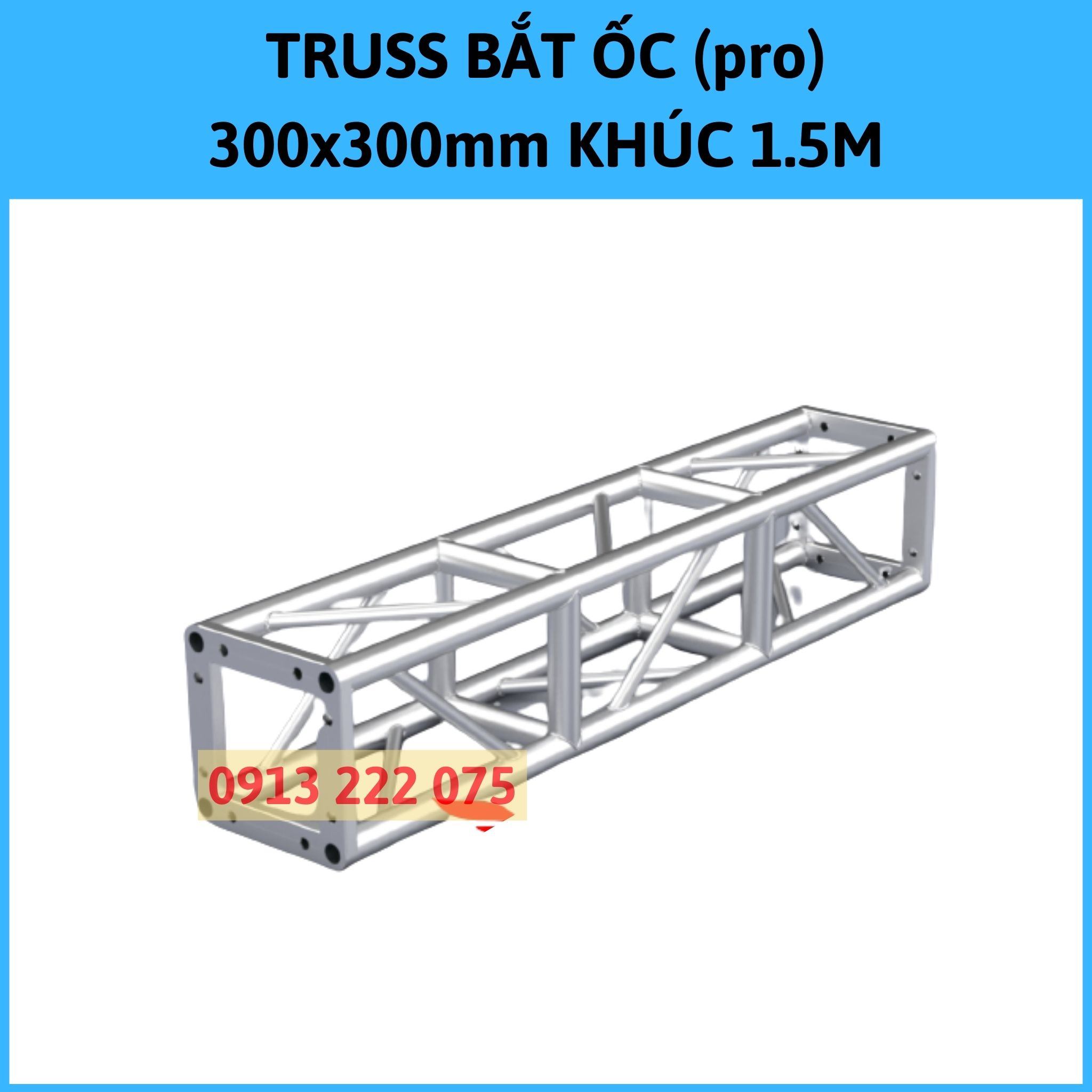

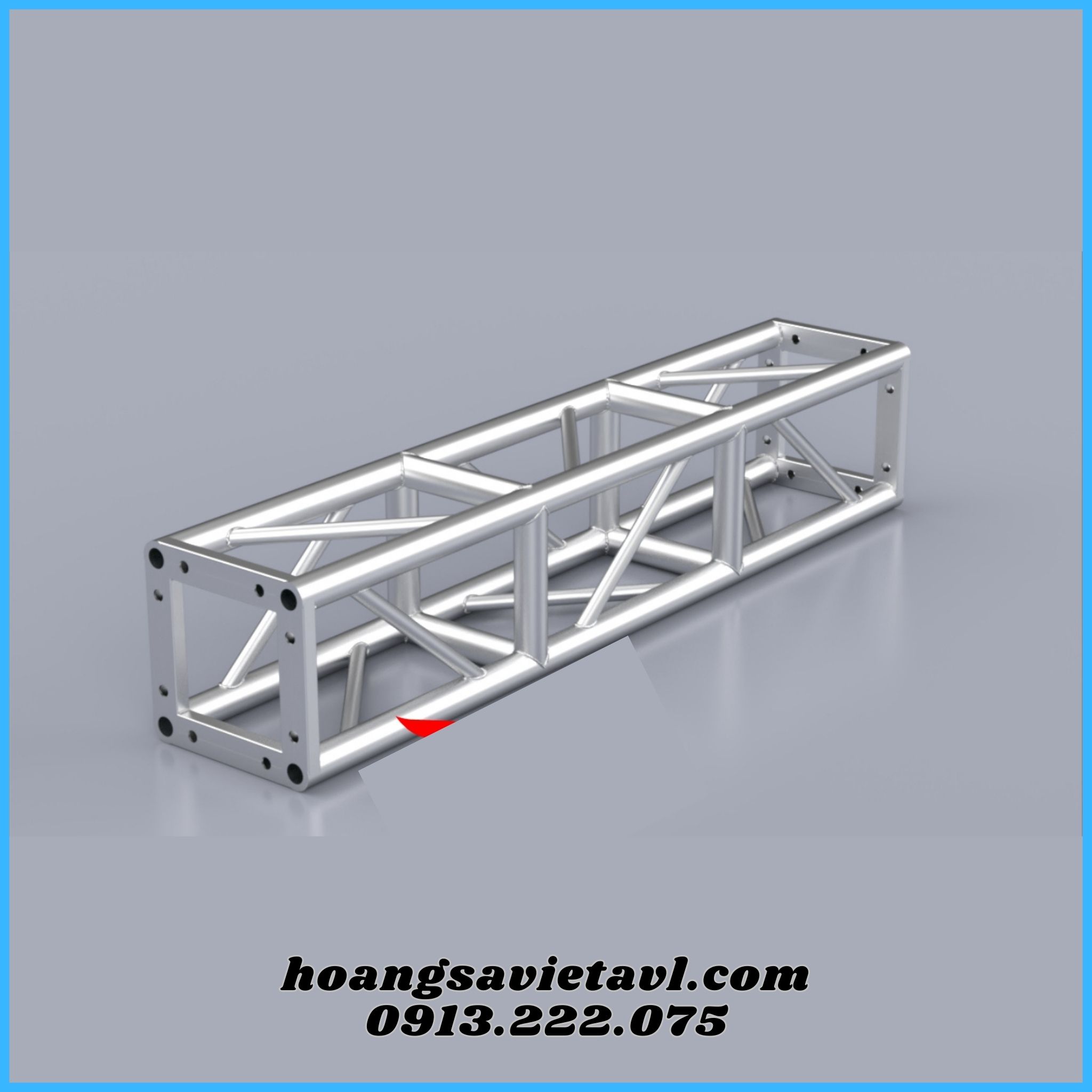

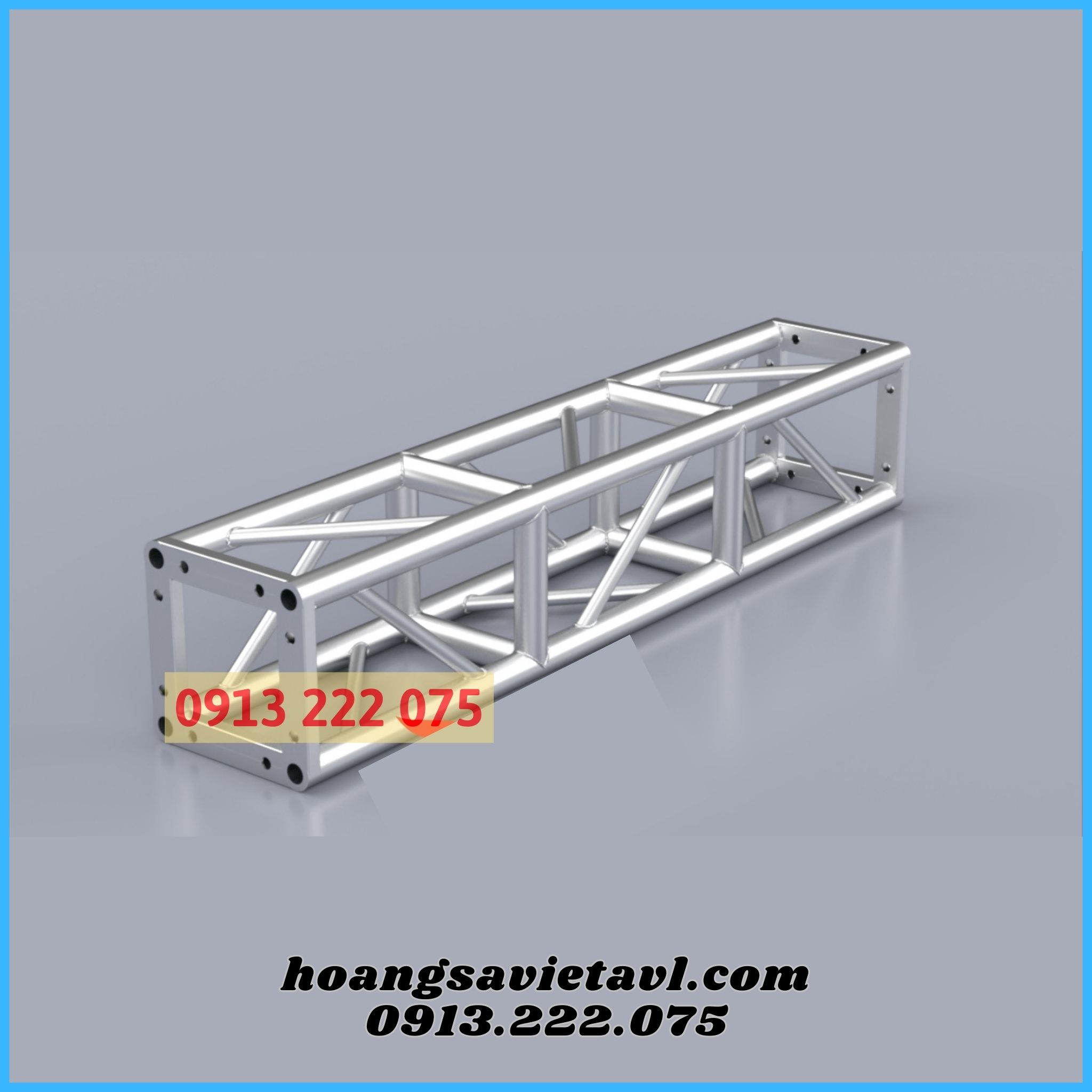

300x300mm Aluminum Truss Frame, 1.5m Section

Specifications for 300x300mm Pro aluminum truss frame with DA3030BP45_1.5 bolt fasteners.

- Applications: Stage truss systems, event tents, stage lighting truss systems.

- Alloy material: Aluminum Alloy 6061-T6/6082-T6

- Connection type: 8-hole bolted truss with a large 50mm diameter crossbar.

- Module length: 1500mm (1.5m) or manufactured to order.

- Structure: 4D box 300*300mm or made to order.

- Maximum aperture: Extended maximum aperture of 13m (13000mm)

- Box type: 4D square box with 4 sides

- Main aluminum tube: φ50*3mm - Tube diameter 50mm. Thickness 3mm

- Horizontal pipe: φ50*2mm - Pipe with a diameter of 50mm and a thickness of 2mm.

- Angled tube: φ25*2mm - Tube with a diameter of 25mm and a thickness of 2mm.

- Color: Natural silver-white aluminum alloy color. Or painted as requested.

- Weight: 13.21kg / (1.5m module)
