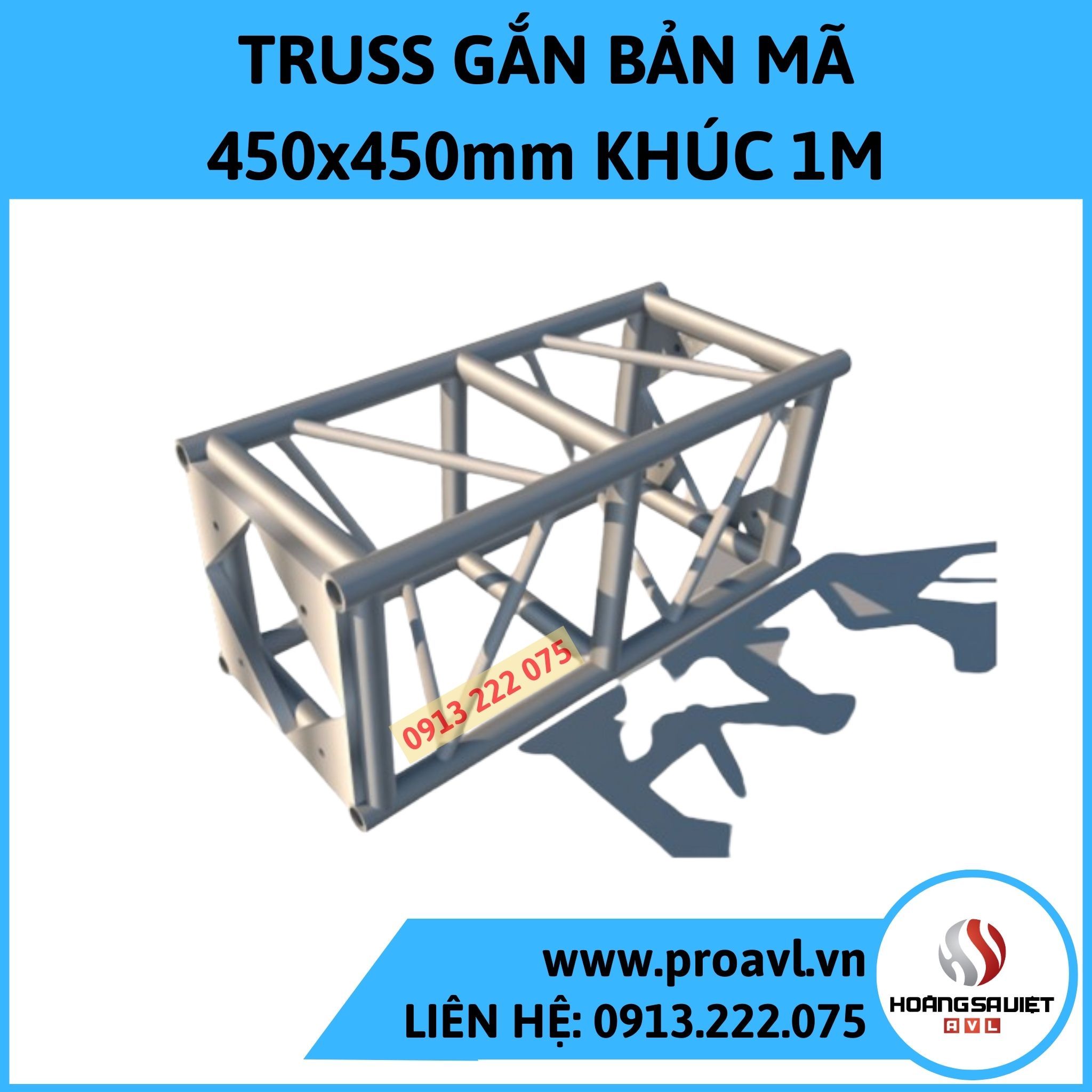

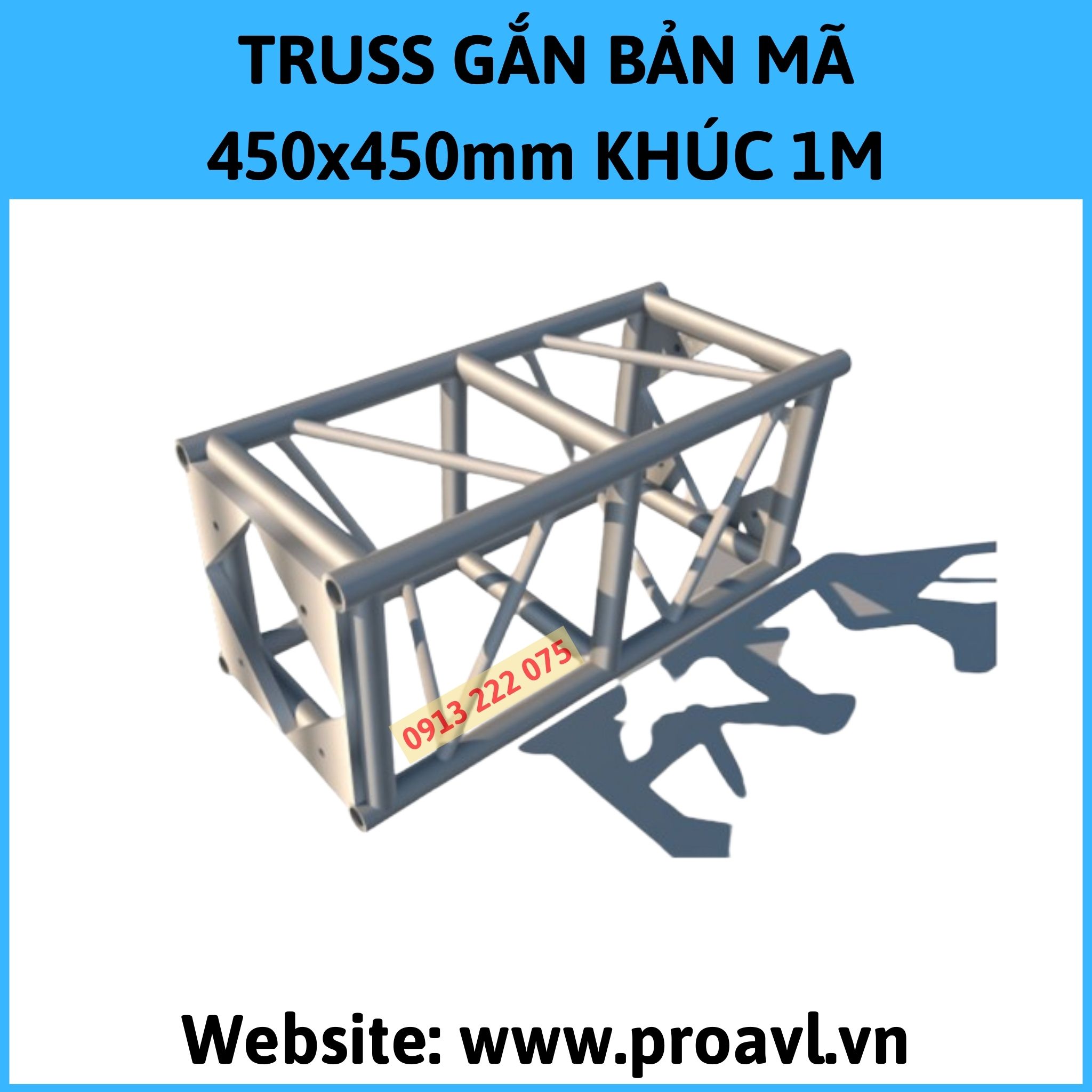

Aluminum Truss Frame 450x450mm 1M Section - V4545B4P

Technical specifications of screwed aluminum truss frame V4545B4P-1M

- Material: Aluminum Alloy 6061-T6
- Connection type: Truss with screws (bolts) 4 large transom holes of 50mm
- Module length: 1000mm (1.0m)
- Structure: 4D box 450x450mm
- Aperture maximum: Extend maximum aperture 20m
- Box form: 4D square box with 4 sides
- Main aluminum tube: Ø50*3mm
- Horizontal tube: Ø50*2mm
- Secondary tube: Ø25*2mm
- Corner connection plate: thickness 12mm
